| Description | Zhaga Luminaire Mounting Connector |
| Article No. | V-65F0373-001N |
| Input Voltage | 30 VDC/AC |
| Rated Current | 1.5 A |
| Standard | Zhaga Book 18 |

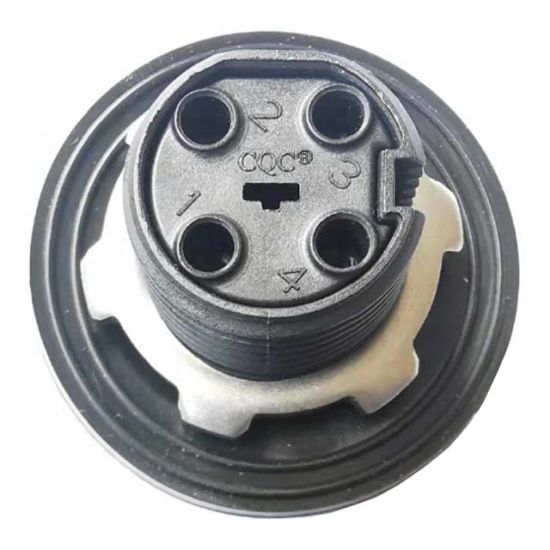

| Connection | Pin 1: Positive (+) pole (24 V from power supply) Pin 2: Negative (-) pole for DALI protocol, negative (-) pole for 24 V power supply, and common ground for digital I/O contacts Pin 3: Positive (+) pole for DALI protocol Pin 4: General-purpose digital I/O (greater than 7 V) |
| Material | PBT |
| Seal Material | Silicone |
| Weight | 35 g |
| Color | Black |
| Dimensions | Ø38 mm × H26.5 mm |
| Application | For Zhaga 40 (V-42B4448-001N) and Zhaga 80 (V-42B4448-002N) |

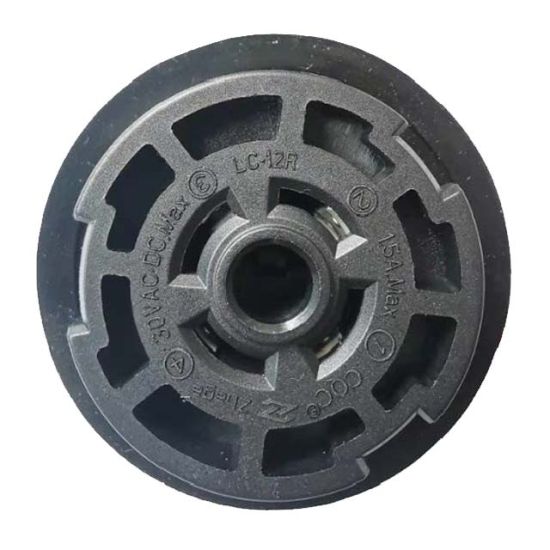

Zhaga Luminaire Mounting Connector (Book 18)

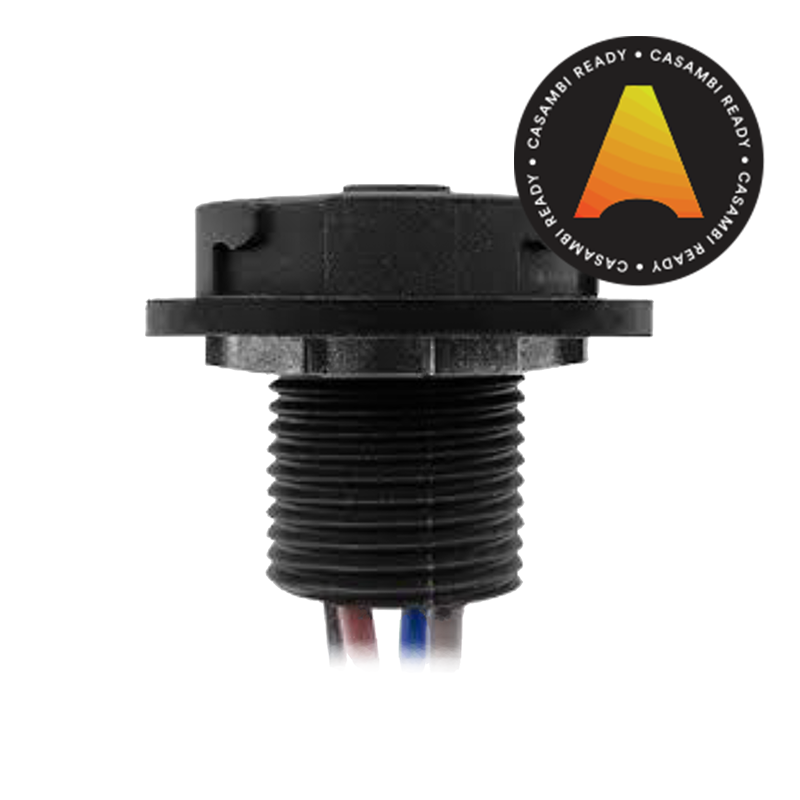

This connector is used to prepare a luminaire with a Zhaga Book 18 receptacle mounted directly on the luminaire. Once the luminaire has been equipped with a Zhaga receptacle, a Casambi Zhaga node can easily be installed to enable smart lighting control.
To make the luminaire Casambi Ready, use either Zhaga 40 or Zhaga 80.
