| Designation |
LED-dimmer VD200
|
|
| E-number | 13 774 82 | |
| Art. number | V-4020020TRL | |
| Effect | 1-200VA | |
| Primary voltage | 220-240V | |
| Input current | 0.9A | |
| Function |
Trailing end regulation
|
|
| – Dimming function | Knob | |
| – On/off |
Pressure, primary switched
|
|
| Operating temperature | -20°C till +40°C | |
| Tc max | 75°C | |
| Size (LxBxDj) | 84x84x45 mm | |
| Cable area |
1,0-2,5mm2 (AWG 12-22)
|
|
| Weight | 90 g | |
| Color | Vit | |
| Enclosure | ||
| Framework | ||
| – Material | PBT | |
| – Flame retardant class | V-0 | |
| PCB Enclosure | ||
| – Material | PC | |
| – Flame retardant class | V-0 | |
| Plate | ||
| – Material | Aluminum | |
| – Flame retardant class | – | |
| Coupling |
Screw clamp (max. 2,5mm2) Screw terminal
|
|
| Protection | ||
| – Transients | Yes | |
| – Overload | Yes, 4A fuse | |
| – Overheating |
Yes, 115°C automatic reset
|
|
| – Short-circuit |
Yes, automatic reset after
removal of error |
|
| Area of usage |
LED, 230V halogen, incandescent, dimmable LED ballast, electronic transformer |
|
| Stairfunction |
Yes (ON / OFF can be controlled by separate push buttons
|
|
| Soft start | No | |
| Frame compability |
Busch Jaeger, GIRA, Eljo
|
|
| Operating humidity |
<90% RH non cond.
|
|
| Protecion class | II | |
| Enclosure class | IP20 | |
| Manufacturing standard |
EN 55015/A2: 2009
EN 61547:2009 EN 61000-3-2/A2:2009 |
EN 61000-3-3:2008
EN 60669-2-1/A12:2010 EN 60669-1:A2:2008 |
| Approval | CE |
Snurra mig!

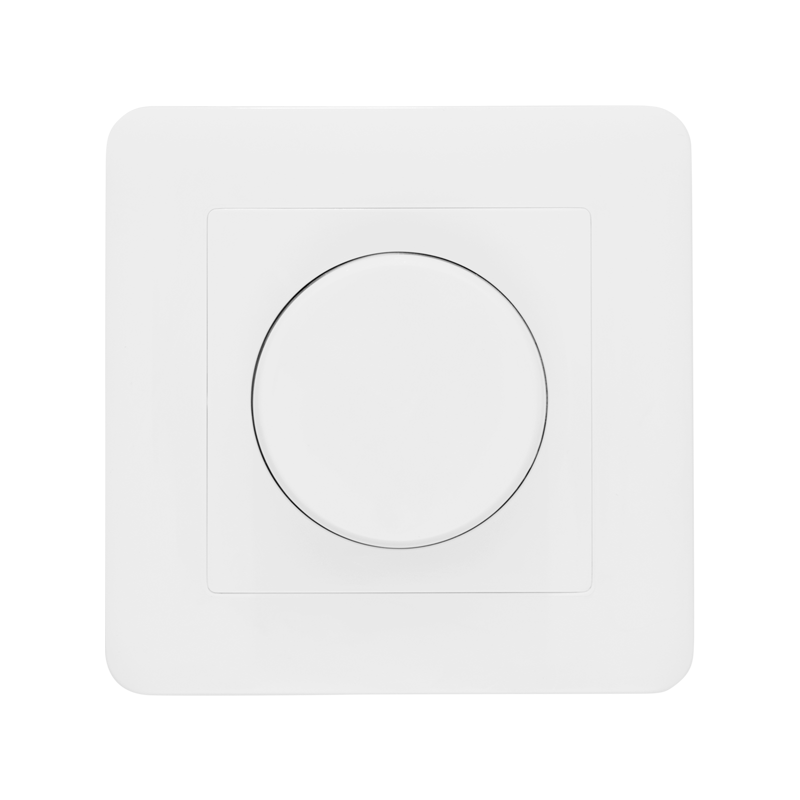

Rotary dimmer for LED VD200
VD200 is a rotary dimmer with trailing edge control that is adapted for 230V halogen, incandescent and LEDs from 1-200VA, dimmable LED ballasts and electronic transformers. Sold complete with center plates and knobs adapted to Exxact, Elko and Gria.
Low load
The LED dimmer VD200 starts at 1VA and dims not only LED but also incandescent light, 230V halogen, dimmable low-energy lamps and electronic transformers.
Setting options
VD200 is a type of rotary dimmer for easy setting of the lowest dimmer level. Knobs are available to counteract and reduce flicker that can occur in an installation when the light source is dimmed to its minimum level.
Call forwarding options
VD200 has stair connection option, which means that you can dim and turn on in one place and turn off in another – a must in today’s home.
Beskrivning
Characteristics
• No neutral is needed
• Adapted for LED
• Starts at 1VA
• 200VA LED
• Stair connection option
• Mad frame adapted for Elko and Exxact
