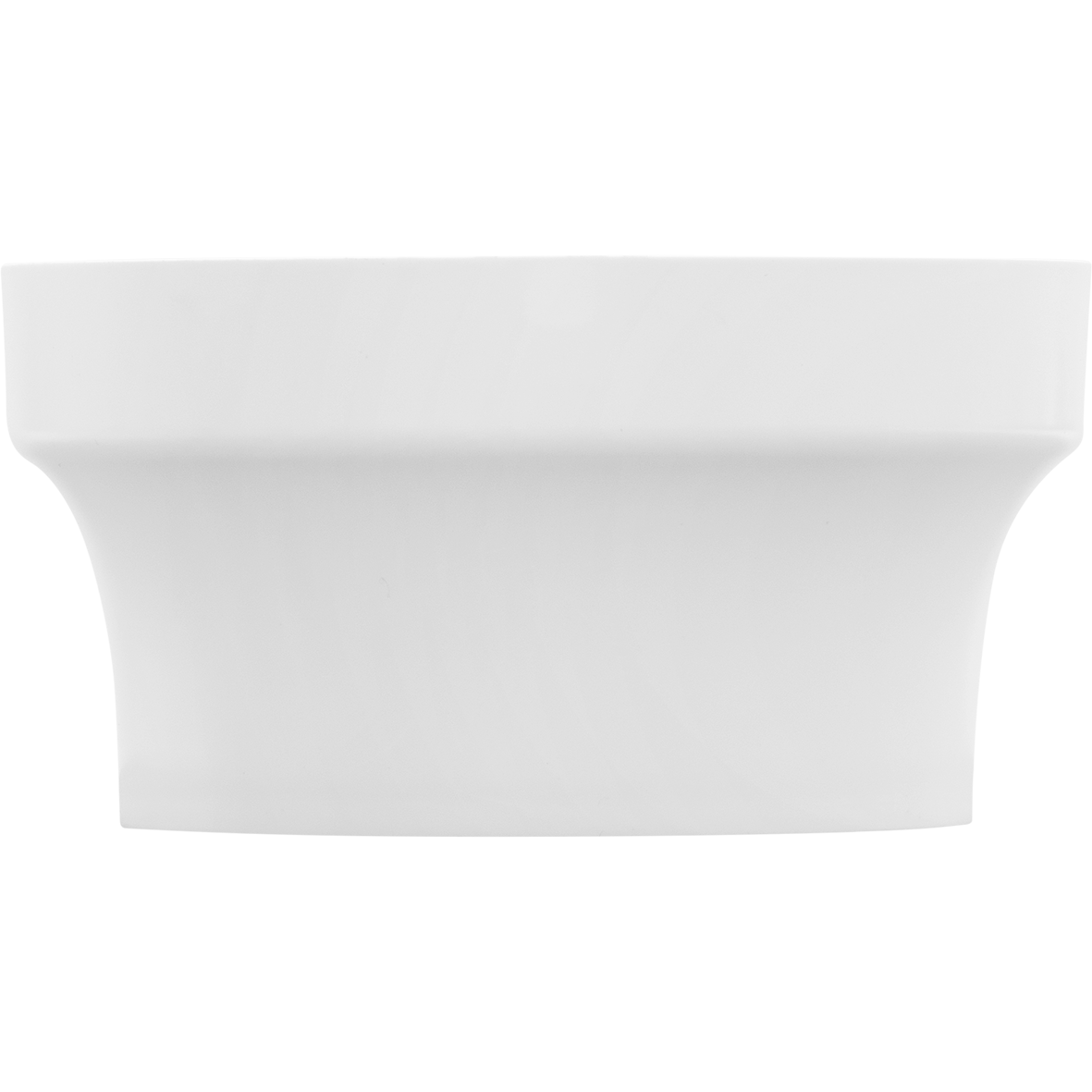

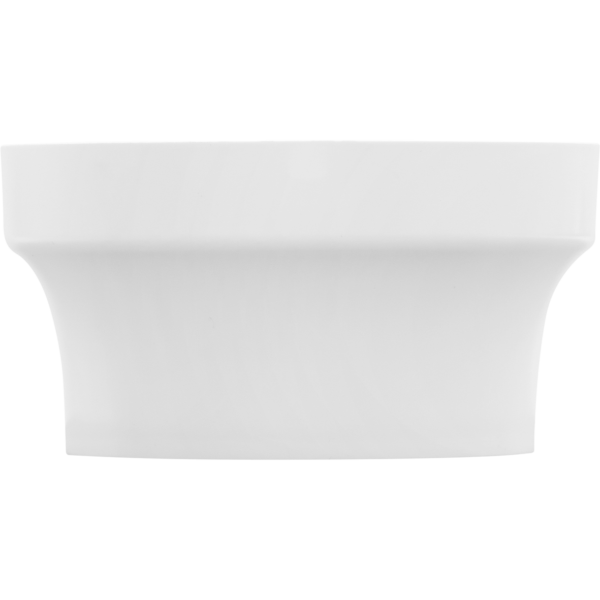

Sensor accessory for IP20 surface-mounting of models SRD2PB & SR2PB, in white colour.
In addition to installation in the ceiling, the S20BOX-W is equipped with pre-made screw holes that fit wall mount boxes and ceiling boxes (with corresponding knock-out for cable).

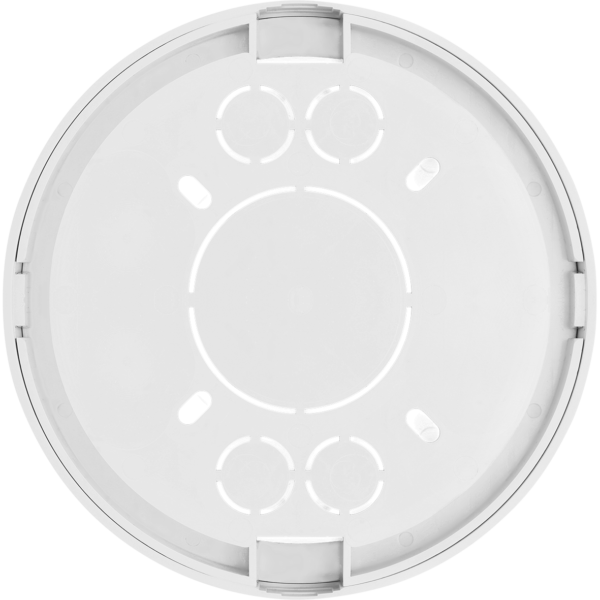

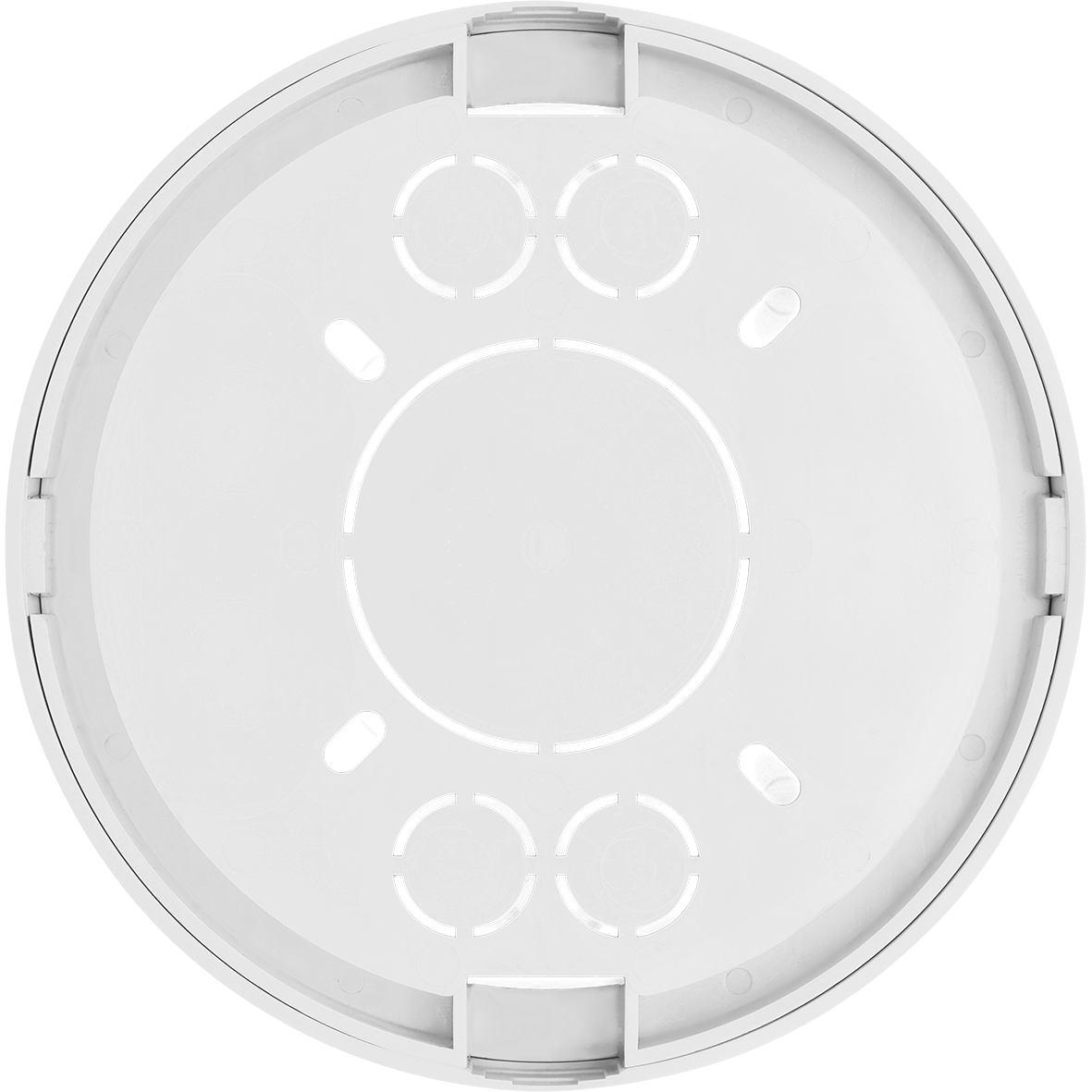

For cable entry, there are pre-made cutting templates suitable for ø7mm, ø13mm, and ø16mm.
Additionally, there are 4 knock-outs suitable for ø16mm flex tube for tube exits in the ceiling.
| E-number | 14 387 01 |
| Art. number | V-65F1202-001N |
| Designation | S20BOX-W |
| Mounting | Surface-mounted |
| Material | PC |
| Isolationsklass | IP20 |
| Colour | RAL9003 |
| Dimensions (B x H) | 120 x 61,8mm |
| Cable entry | Cut-outs for 7mm, 13mm och 16mm 16mm knock-outs for flex tube 45mm knock-out for wall mount box / ceiling mount box |
| Ambient temperature | -20 till +35°C |
| Weight | 102g |
| Flamskydd | V-0 |
| Approvals | CE, UKCA |
