| E-number | 13 612 78 |
| Article Number | V-40X0100-501Y |
| Designation | FASDIM-IP66BOX-Wall |
| Input Voltage | 230 VAC |
| Input Frequency | 50 Hz, 60 Hz |
| Output | Up to 100 VA (75 W) |
| Maximum Inrush Current | 10 A, 100 ms |
| Radio Frequencies | 2402 MHz-2480 MHz |
| Maximum RF Output Power | 8 dBm |
| Standby Power Consumption | <0.3 W |
| Mounting | Surface-mounted |
| Operating Humidity | 0…80% RH, non-condensing |
| Operating Temperature | -20°C to +45°C |
| Dimensions (L × W × H) | 93 × 93 × 62 mm |
| Weight | 115 g |
| Cable Cross-Section | 0.5-1.5 mm² |
| Housing Material | PC (Polycarbonate) |
| Impact Resistance | IK09 |
| Protection Rating | IP66 |
| Protection Class | Class II |
| Certification | CE |

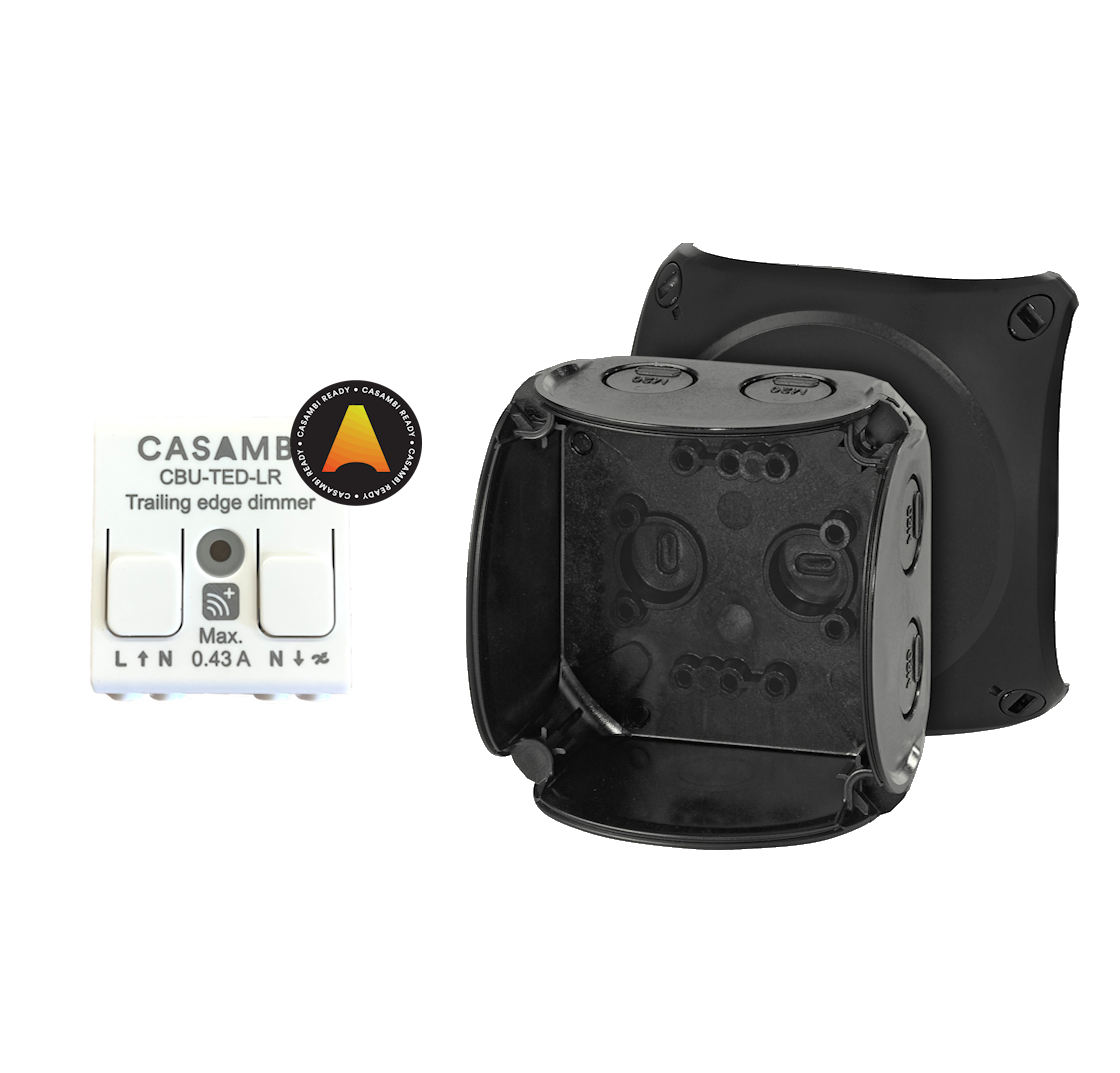

Control Module FASDIM-IP66BOX-Wall
FASDIM-IP66BOX-Wall is a trailing-edge dimmer designed for dimming loads up to 100 VA (75 W) with a maximum inrush current of 10 A for 100 ms.
The unit is intended for wall mounting and is supplied in a weather-resistant IP66 enclosure with IK09 impact protection. The product supports Casambi Long Range mode and is designed for operation in temperatures down to -20°C.
