| E-number | 13 612 81 |
| Article No. | V-42B0041-001Y |
| Description | DALI-IP66BOX-Wall |
| Input Voltage | 230 VAC |
| Input Frequency | 50 Hz, 60 Hz |
| Output | 1-50 DALI Drivers |
| Radio Frequencies | 2402 MHz – 2480 MHz |
| Maximum Radio Frequency Power | 8 dBm |
| Standby Power Consumption | <0.3 W |
| Mounting | Surface-mounted |
| Operating Humidity | 0…80%, non-condensing |
| Operating Temperature | -20 to 50°C |
| Dimensions (L × W × H) | 93 × 93 × 62 mm |
| Weight | 143 g |
| Cable Cross-section | 0.2-3.3 mm² |
| Enclosure Material | PC (Polycarbonate) |
| Impact Resistance | IK09 |
| Protection Rating | IP66 |
| Protection Class | II |
| Certification | CE |
Control Module DMX-IP66BOX-Wall
DMX-IP66BOX-Wall is a Casambi DMX-512 controller with 12 channels. It controls one DMX-512 universe and connects to DMX-compatible lighting devices and luminaires (1-30 units).
The controller requires the supplied 24 VDC power supply to control a non-isolated DMX-512 universe.
DMX-IP66BOX-Wall can control luminaires using Casambi’s colour control interface and up to 12 DMX channels through Casambi Evolution mode controls. It is an ideal DMX controller for RGBW and Tunable White (TW) lighting applications, allowing users to select from multiple Casambi profiles for control of four, eight, or twelve slider channels as well as the standard Casambi four-channel colour controller.

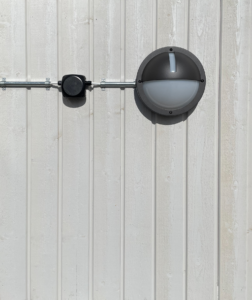

The unit is intended for wall mounting and is supplied in a weather-resistant IP66 enclosure with IK09 impact protection. The product supports Casambi Long Range mode and is designed for operation in temperatures down to -20°C.
