| E-number | 13 022 09 |
| Article No. | V-32B0001-001Y |
| Description | RELÄ-IP66BOX-Wall |
| Input Voltage | 24 VDC / 230 VAC |
| Input Frequency | 50 Hz, 60 Hz |

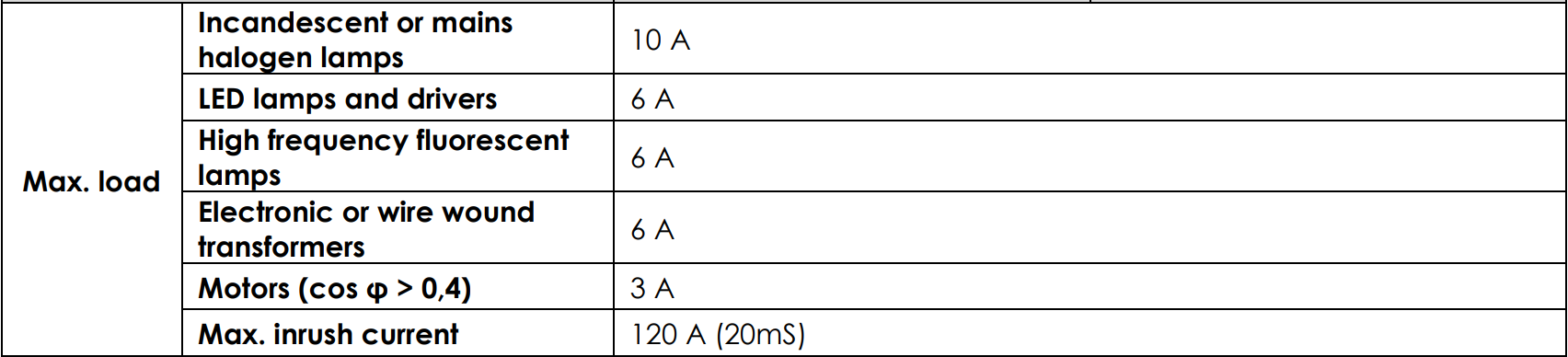

| Output | Up to 10 A |
| Maximum Inrush Current | 120 A, 20 ms |
| Radio Frequencies | 2402 MHz – 2480 MHz |
| Maximum Radio Frequency Power | 8 dBm |
| Standby Power Consumption | <0.3 W |
| Mounting | Surface-mounted |
| Operating Humidity | 0…80%, non-condensing |
| Operating Temperature | -20 to 50°C |
| Dimensions (L × W × H) | 93 × 93 × 62 mm |
| Weight | 149 g |
| Cable Cross-section | 0.2-3.3 mm² |
| Enclosure Material | PC (Polycarbonate) |
| Impact Resistance | IK09 |
| Protection Rating | IP66 |
| Protection Class | II |
| Certification | CE |
Control Module DALI-IP66BOX-Pole
DALI-IP66BOX-Pole is a Casambi control module with a push-button input for controlling 1-50 DALI or DALI-2 luminaires in broadcast mode. The unit supports Tunable White (TW) and RGBW lighting applications.
Using Casambi group profiles, connected DALI luminaires can be assigned to up to eight individual groups.
The unit is intended for pole mounting and is supplied in a weather-resistant IP66 enclosure with IK09 impact protection, including a pole mounting bracket. The product supports Casambi Long Range mode and is designed for operation in temperatures down to -20°C.
