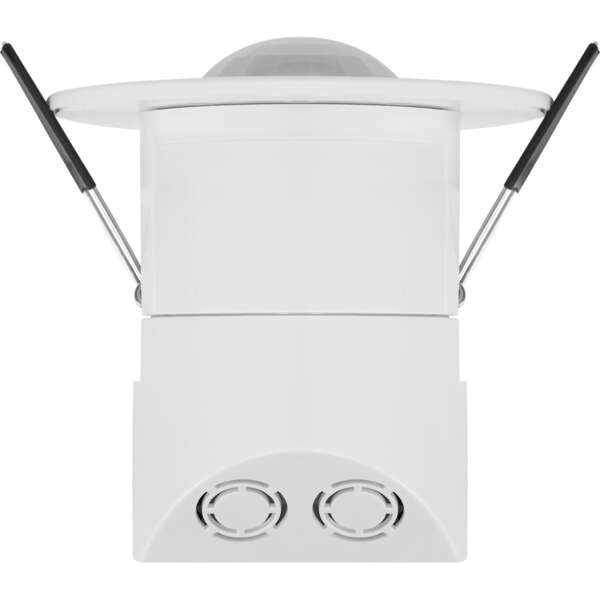

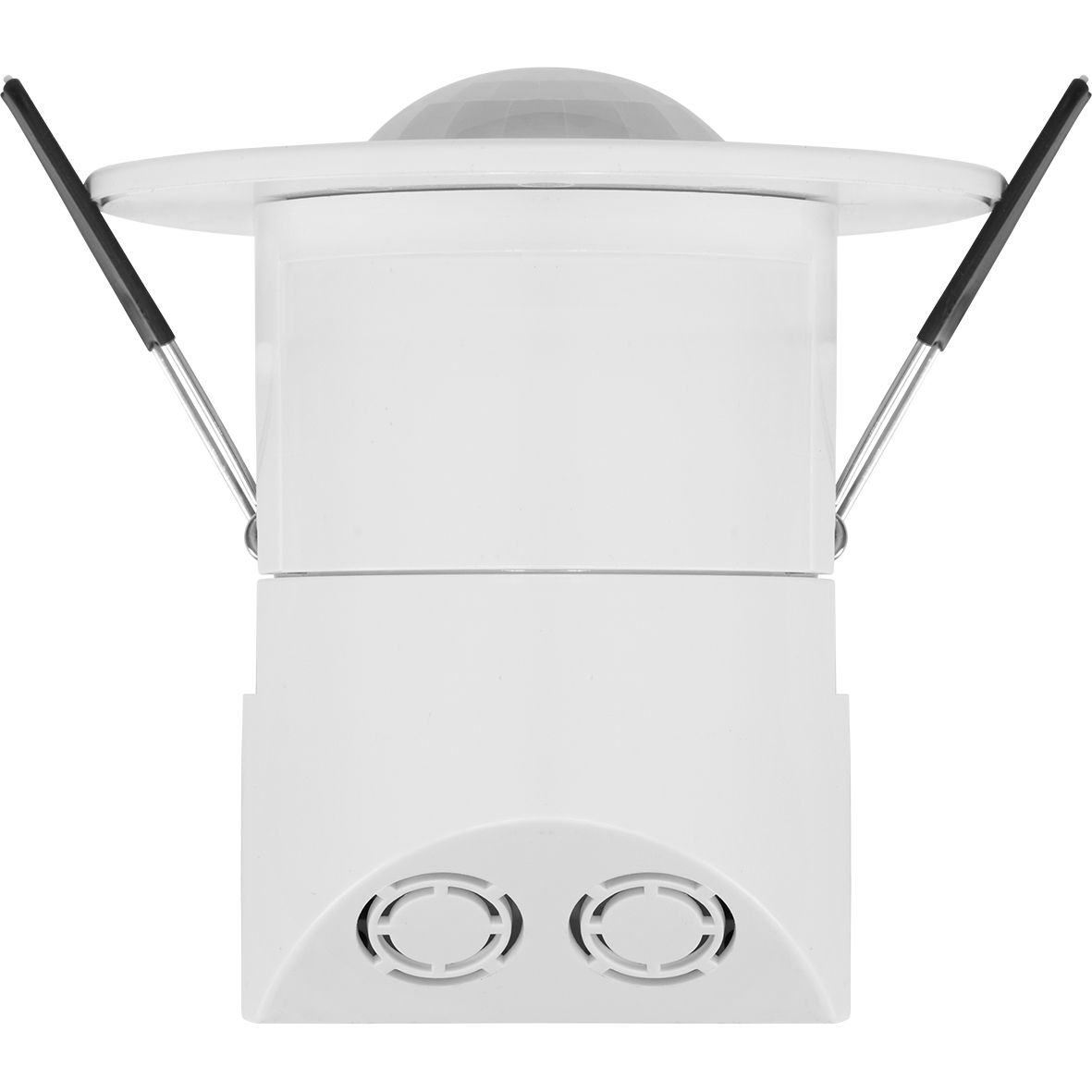

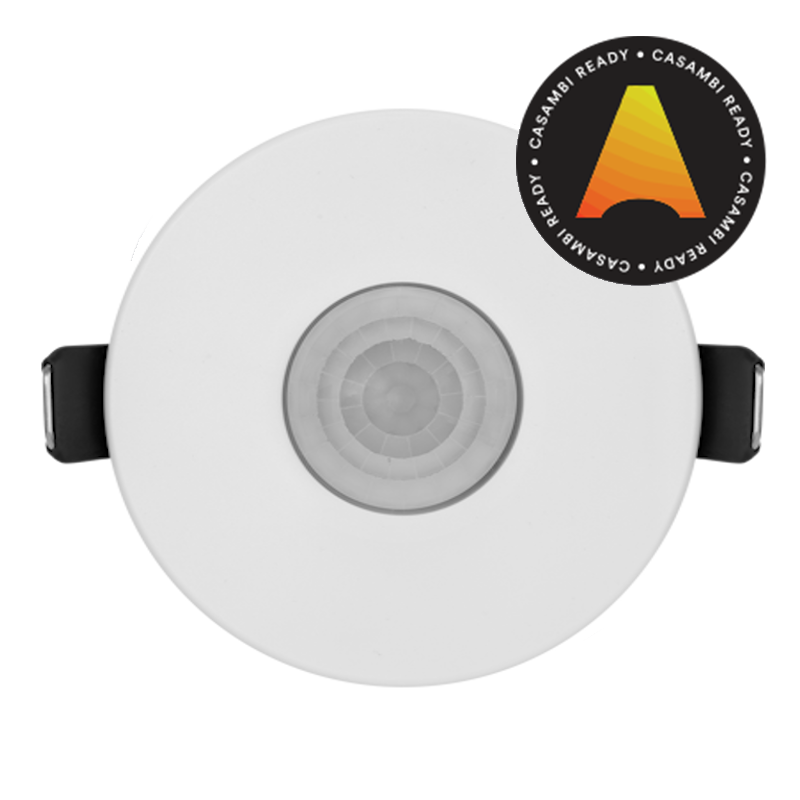

Active sensor SRD2PB

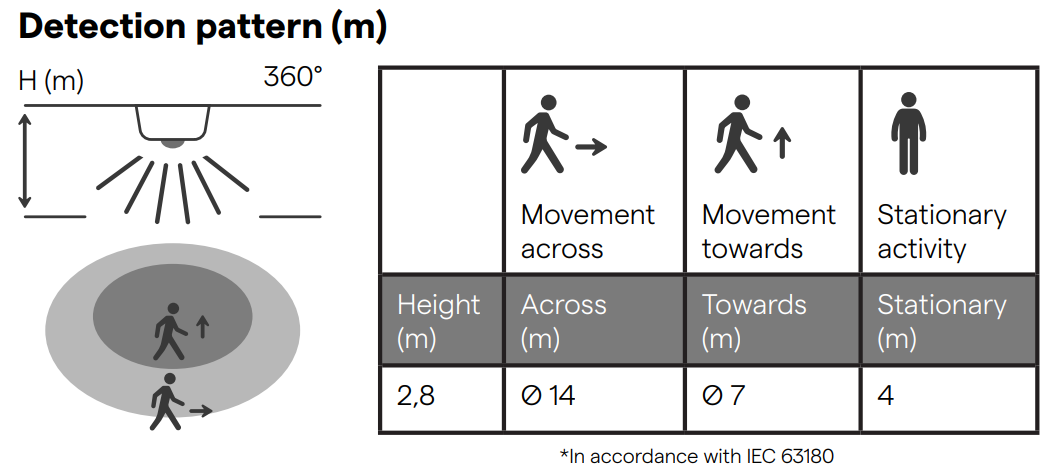

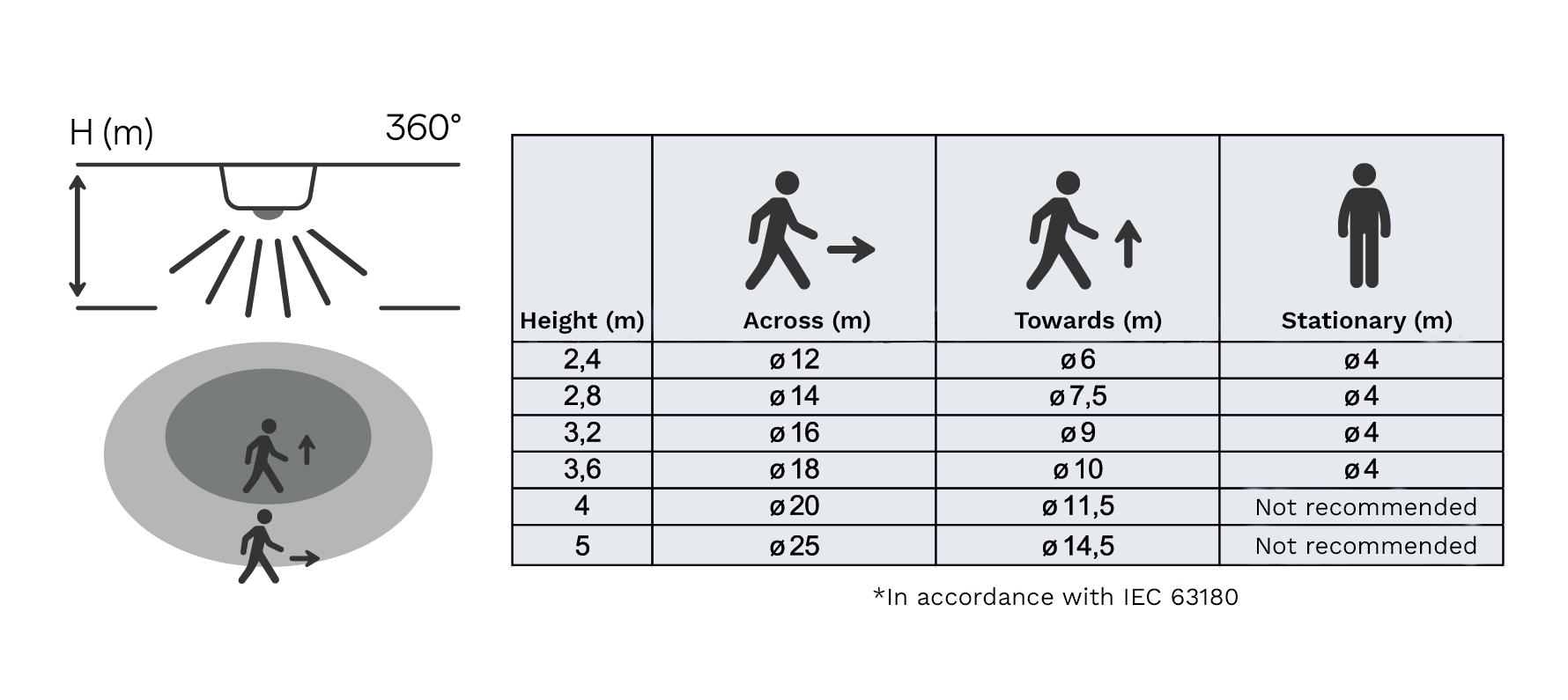

Active recessed Casambi PIR sensor with DALI & relay output and two push button inputs. A multifunctional product designed to handle all the lighting control needs of a room and at the same time be part of a property-wide Casambi system. The sensor provides 14m ⌀ detection at a mounting height of 2.8m.

The sensor comes pre-configured with factory settings, allowing it to operate immediately upon power-up—no configuration needed.
These settings are retained even when the sensor is paired within a Casambi network.
Function customization is easily done via the Casambi app.

The sensor is excellent for use as a room solution where the sensor DALI dims ceiling luminaires (up to 20 DALI drivers) and the relay output for e.g. ambient lighting or whiteboard. With a presence and light sensor, energy-efficient lighting is ensured regardless of the weather and only lights up when someone is in the room. You can also switch to the TW profile and get circadian light that also follows the sunrise and sunset. Use the group profile to group control the DALI drivers in up to 4 groups.

The sensor can be made surface-mounted with the S20BOX which is sold separately.
