| E-number | 13 613 18 |
| Article No. | V-65F0782-901N |

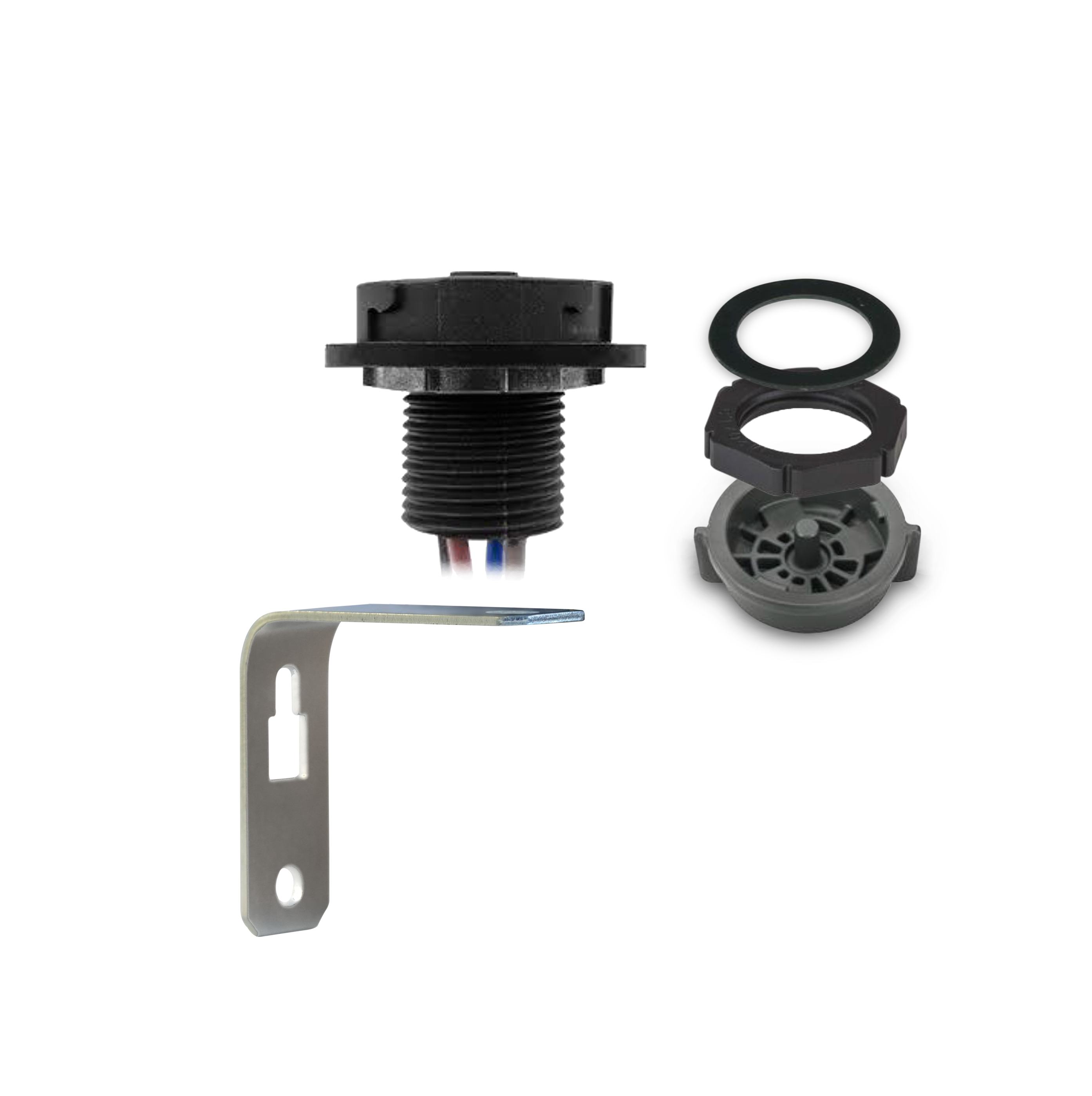

| Description | Zhaga Mounting Bracket, Wall/Pole |
| Dielectric Strength | 15 kV |
| Contact Rating | 5 A / 250 V |
| Operating Temperature | -40 to +80°C |
| Compliance | ANSI C136.10-2017, UL UV (f1) & CB |
| Connector Output | Red wire: 24-40 V DC (Photocell) Gray wire: DALI − Purple wire: DALI + |
| Pre-mounted Cable Length | 1.5 m |
| Weight | 81 g |
| Dimensions | Accepts receptacles mounted on Ø40 mm or Ø80 mm photocell bases |
| IP Rating | IP66 |
| Application | For Zhaga 40 (V-42B4448-001N) and Zhaga 80 (V-42B4448-002N) |

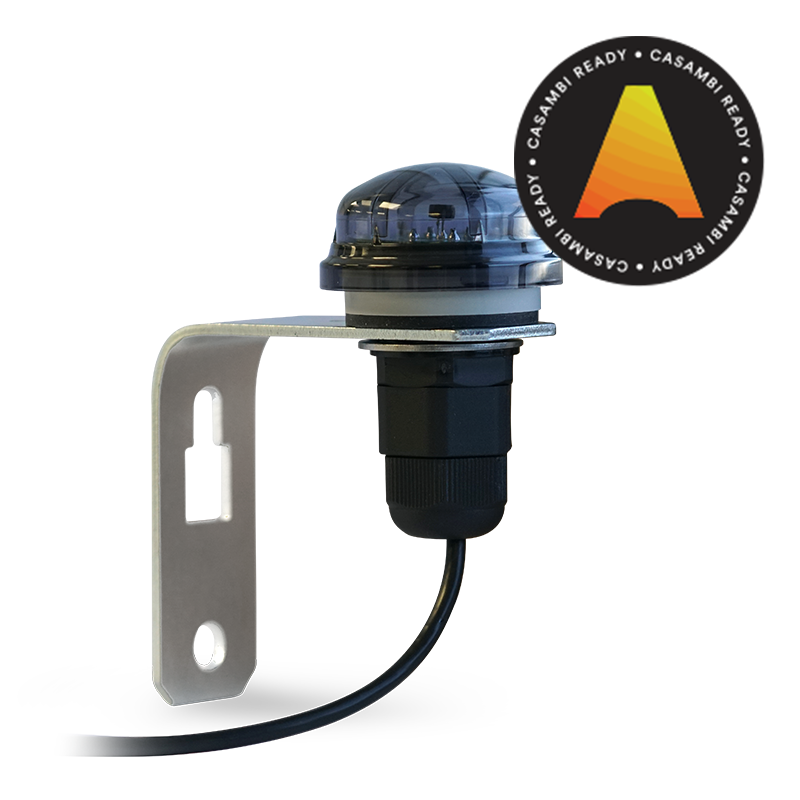

Connection solution for preparing a luminaire with a Zhaga connector (Book 18) by installing the connector on a pole or façade and then running a cable to the luminaire. Once the luminaire has been prepared with a Zhaga connector, a Casambi Zhaga node can easily be installed to make the luminaire smart.
To make the luminaire Casambi-ready, use either the Zhaga 40 Passive or the Zhaga 80 Active.
